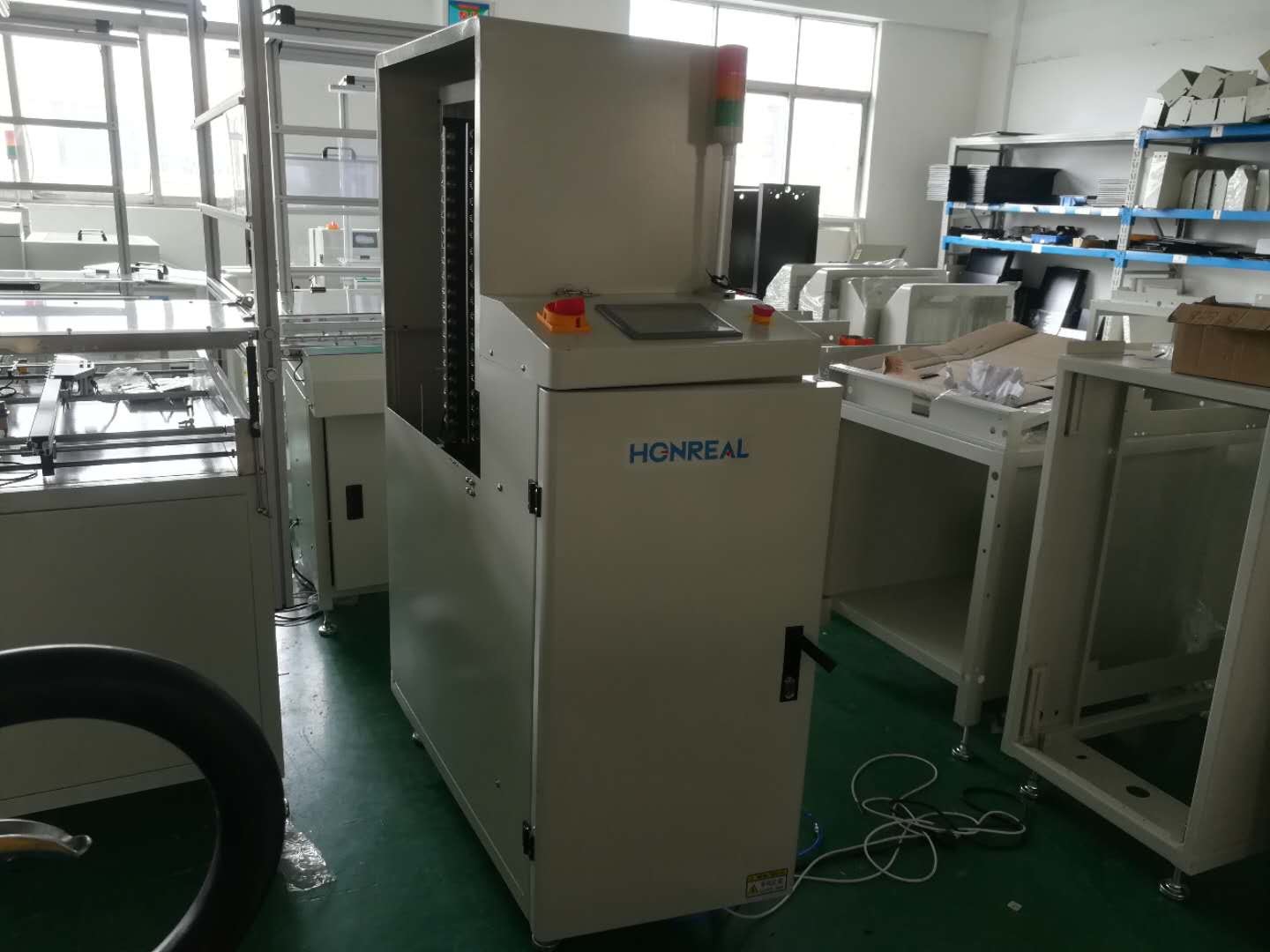

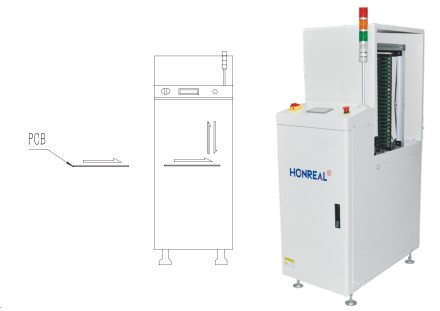

China Factory Sale Smt Vertical Buffing Conveyor With Smema For PCB Making Machine
Product introduction:
1.This equipment is used as a buffer between SMT machines.
2.PLC control system,Working is stably and reliably;
3.Easy to operate LED touch screen control interface;
4.FIFO(first in first out),LIFO(last in first out)and pass through function optiona;
5.Fast,smooth,accurate retrieval positioning;
6.Memory function,control the order of pcb’s pass in and out;
7.Smooth and parallel width adjustment(leadscrew);
8.Full closed design ensures safety level of operation.
9.Smaller footprint.
10.SMEMA port is compatible;
| Technical parameters |
| Function | This equipment is placed after production line printer or before and after the equipments of different working Speed as a buffer |
| PCB thickness | Min0.6mm |
| MAX PCB’s capacity | 20pcs |
| PCB loading time | Approx 20 seconds |
| Transport direction | Left to right/right to left(optional) |
| Transport height | 900±20mm(or customized) |
| Air pressure | 4-6 bar, MAX30L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 250V/A |
| Specifications |
| Model No | HR-350CB | HR-460CB |
| PCB size (L*W)~(L*W)mm | (50x50)~(450x350) | (50x50)~(550x460) |
| Machine size (L*W*H)mm | 1310*540*1200 | 1310×640×1200 |
| Weight | 100kg | 120kg |
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
